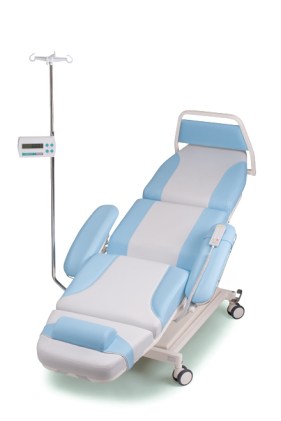

Comfort-4 Scale
Height-adjustable with integrated weighing
Comfort-4 Scale combines the full height-adjustable Comfort-4 platform with an integrated precision weighing system. The built-in scale with 100g resolution enables real-time weight monitoring directly in the therapy chair, essential for dialysis treatments where accurate fluid balance tracking is critical. The touch-screen terminal provides intuitive access to weight data, tare functions, and data export, streamlining clinical workflows and improving the accuracy of treatment dose calculations.
Key features
Considered in every detail.
Integrated Weight Measurement
Continuous monitoring of patient weight and weight change during treatments. Scale accuracy of 100g is tested and certified by a Notified Body for legal verification of accuracy, essential for accurate dialysis dose calculations.
Four-Motor Adjustment
Microprocessor-controlled 4 standard motors for backrest, legrest, seat tilt, and height adjustment. 13-button handset with IP67 protection provides comprehensive positioning for optimal patient comfort.
Motorized Height Adjustment
Electric height adjustment from 54 to 76 cm adapts the chair to patients of all sizes. Smooth, precise height transitions ensure comfortable positioning without disturbing the integrated scale readings.
Trendelenburg Position
Real Trendelenburg position (-13° below horizontal) per EN 60601-2-52 provides emergency positioning capability. Accessible via the red handset button or optional foot-switches on both sides of the underframe.
Central Brake System
Central operating brake system with 10 cm twin-wheel castors provides simultaneous locking of all wheels for maximum stability during treatment. Easy single-point operation for healthcare staff.
Exchangeable Upholstery
Blood-resistant artificial leather available in over 50 colours with DuoShape dual-colour option. Quick-change design for easy maintenance. Seamless surfaces simplify cleaning protocols and meet clinical hygiene standards.
Specifications
Technical detail.
- Seat Height
- Adjustable 54–76 cm
- Backrest Range
- 80° (incl. -13° Trendelenburg)
- Seat Tilt
- 20°
- Legrest Range
- 30°
- Footrest Adjustment
- 29 cm
- Dimensions (Seated)
- L 145 × W 92 cm
- Upholstery Size
- L 215 × W 60 × H 9.5 cm
- Armrest Size
- L 57 × W 17 cm
- Scale Resolution
- 100 g (certified)
- Castors
- 10 cm twin wheel with total lock
- Chair Weight
- 95 kg
- Max Load
- 200 kg
- Power Supply
- 100–240V AC, 50/60 Hz
- Motors
- 24V DC, IPX6
- Frame Colour
- RAL 9001
- Standard Motors
- 4 (backrest + legrest + seat tilt + height)
- Patient Entry
- Side
- Compliance
- 2014/31/EU, 93/42/EEC & harmonised standards
- Certification
